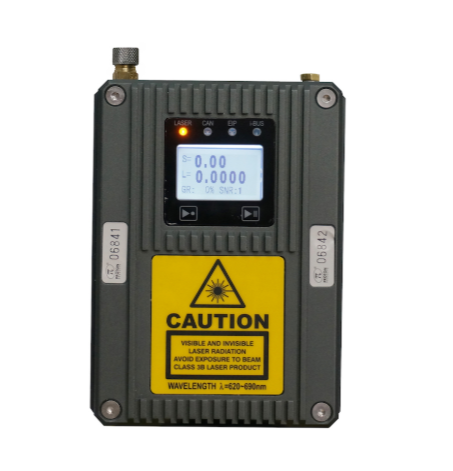

Thiết bị đo chiều dài và tốc độ không tiếp xúc SL mini 1220, Proton Vietnam

Features

• Non-contact, high-speed, solid-state laser speed and length measurement with no slippage, drift, mechanical wear or maintenance compared with contact wheel / roller systems.
• Wire optomized SL mini-W series version available for wire and cable applications
• Unidirectional speed and length measurement.

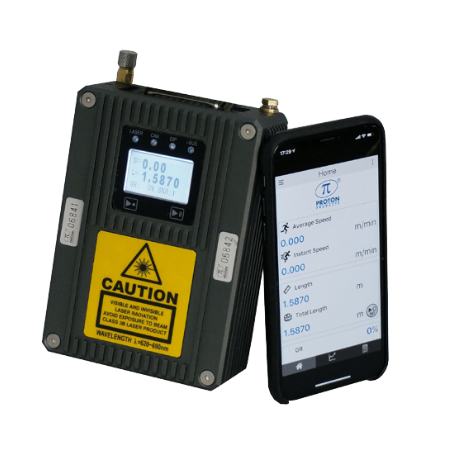

• Ultra-compact design with a footprint comparable to a smartphone.
• Optimized for sheet material and converting applications.
• UKAS-traceable calibration; accuracy better than 0.05% and repeatability better than 0.02%.
• Rugged industrial design for use in factory environments.
• Available fitted with industry-standard communcations interfaces for easy integration with PLCs and production line equipment.
• Excellent value with low cost of ownership.

Operating principle – Laser surface velocimeter

Proton Products InteliSENS® SL mini Series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.

Specifications
