- Mã sản phẩm: 00050MC002
- Giá: Liên hệ
- Lượt xem: 1715
- Từ năm 1999, Proton là một trong những thương hiệu tiên phong về giải pháp đo lường cho ngành sản xuất sợi và cáp. Proton thấu hiểu nhu cầu thực sự của nhà sản xuất sợi và cáp, từ đó đưa ra các sản phẩm tiên tiến nhằm cung cấp các giải pháp đo lường chính xác và dễ dàng sử dụng. Qua đó, sản phẩm của Proton đã xuất hiện trong dây chuyền sản xuất của các nhà sản xuất sợi và cáp hàng đầu thế giới. Vui lòng liên hệ Hotline 0914 237 179 để được tư vấn thêm.
-
- Thông tin sản phẩm
- Bình luận
Introduction

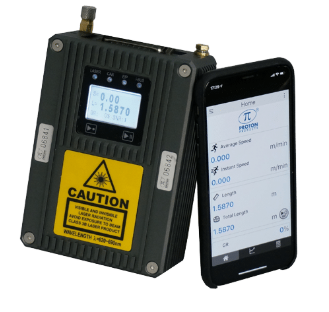

Proton Products InteliSENS® SL mini Series non-contact, unidirectional speed and length gauges provide extremely accurate speed and length measurements in almost any sheet material or converting application.
Production processes for web products, woven and non-woven materials, paper, plastic film, tapes, building materials, flooring and labelling can all be measured using the laser Doppler method.
Applications requiring a precise cut-to-length process benefit from the non-slip and highly accurate laser measurement technique which reduces scrap, increases uptime and improves material yield by eliminating product “Give Away” or “Short Length” claims.
InteliSENS® SL mini Series gauges are money-saving, direct replacements for traditional problematic and high-maintenance contact wheel and roller-type devices and are extremely easy to install and operate. Integration with production line controllers such as PLCs is eased by the availability of a wide variety of industry standard communications interfaces.
Operating principle – Laser surface velocimeter
Proton Products InteliSENS® SL mini Series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.
Specifications
Model | SL mini 1220 | SL mini 3060 | Units |
---|---|---|---|
Part number | 00050MC001 | 00050MC002 | - |
Stand-off distance | 120 | 300 | mm |
4.72 | 11.8 | inch | |
Depth-of-field | 20 | 60 | mm |
0.79 | 2.36 | inch | |
Minimum speed | 0.1 | 0.25 | m/min |
0.33 | 0.82 | ft/min | |
Maximum speed | 2000 | 5000 | m/min |
6560 | 16400 | ft/min |
