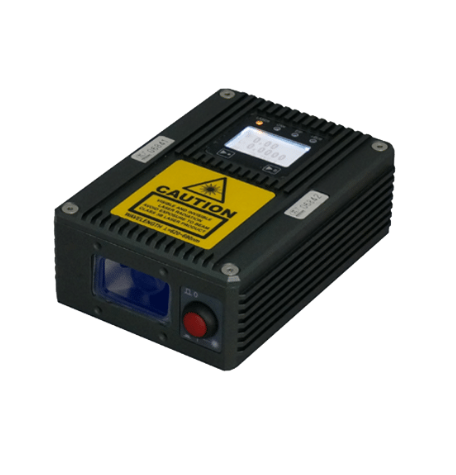

- Mã sản phẩm: 00050MC011
- Giá: Liên hệ
- Lượt xem: 1433
- Từ năm 1999, Proton là một trong những thương hiệu tiên phong về giải pháp đo lường cho ngành sản xuất sợi và cáp. Proton thấu hiểu nhu cầu thực sự của nhà sản xuất sợi và cáp, từ đó đưa ra các sản phẩm tiên tiến nhằm cung cấp các giải pháp đo lường chính xác và dễ dàng sử dụng. Qua đó, sản phẩm của Proton đã xuất hiện trong dây chuyền sản xuất của các nhà sản xuất sợi và cáp hàng đầu thế giới. Vui lòng liên hệ Hotline 0914 237 179 để được tư vấn thêm.
-
- Thông tin sản phẩm
- Bình luận
Features
- Non-contact, high-speed, solid-state laser speed and length measurement with no slippage, drift, mechanical wear or maintenance compared with contact wheel / roller systems.
- Wire optomized SL mini-W series version available for wire and cable applications
- Bidirectional speed and length measurement; accurately measures speed and length during line stoppage, reversal and creepage.
- Ultra-compact design with a footprint comparable to a smartphone.
- Optimized for sheet material and converting applications.
- UKAS-traceable calibration; accuracy better than 0.05% and repeatability better than 0.02%.
- Rugged industrial design for use in factory environments.
- Available fitted with industry-standard communcations interfaces for easy integration with PLCs and production line equipment.
- Excellent value with low cost of ownership.
Operating principle – Laser surface velocimeter
Proton Products InteliSENS® SLR mini Series speed and length gauges illuminate the measured surface with an interference pattern created by the intersection of two laser beams. The alternating bright and dark interference fringes modulate the light scattered by the object with a frequency proportional to the object speed. This scattered light is detected by a photodiode and the electrical signal digitally processed to determine the frequency and hence the speed. Object length is then calculated by integrating the speed measurement over time.
The InteliSENS® SLR mini Series bidirectional speed and length gauges extend this principle by using a high-frequency Bragg cell modulator to illuminate the measured surface with a scanning interference pattern, which generates an oscillating light signal even when the object is stationary. Direction of motion is determined by whether the scattered light frequency is higher or lower than the stationary frequency.
Specifications
Model | SLR mini 1220 | SLR mini 3060 | Units |
---|---|---|---|
Part number | 00050MC011 | 00050MC012 | - |
Stand-off distance | 120 | 300 | mm |
4.72 | 11.8 | inch | |
Depth-of-field | 20 | 60 | mm |
0.79 | 2.36 | inch | |
Maximum speed (bidirectional) | 2000 | 5000 | m/min |
6560 | 16400 | ft/min |
